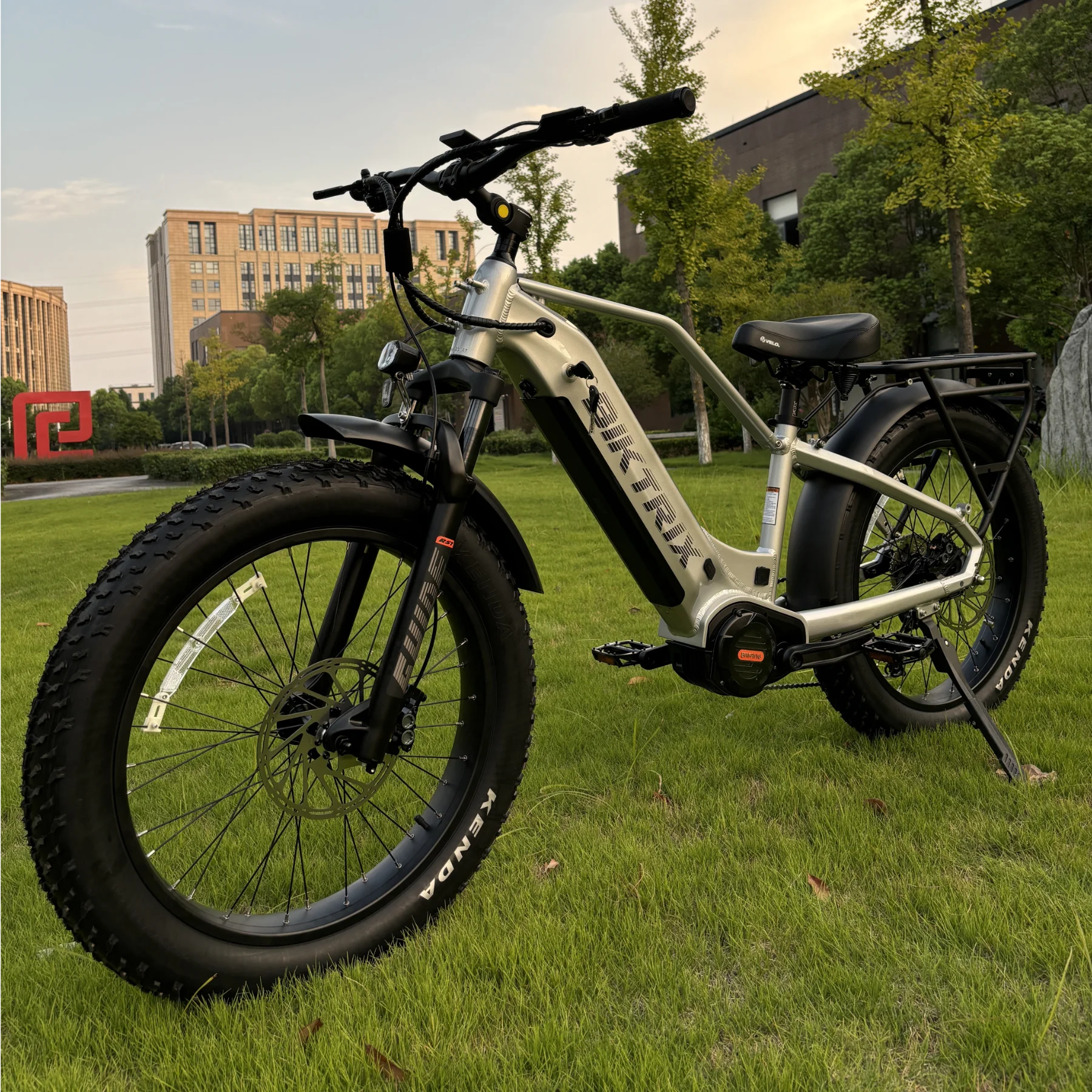

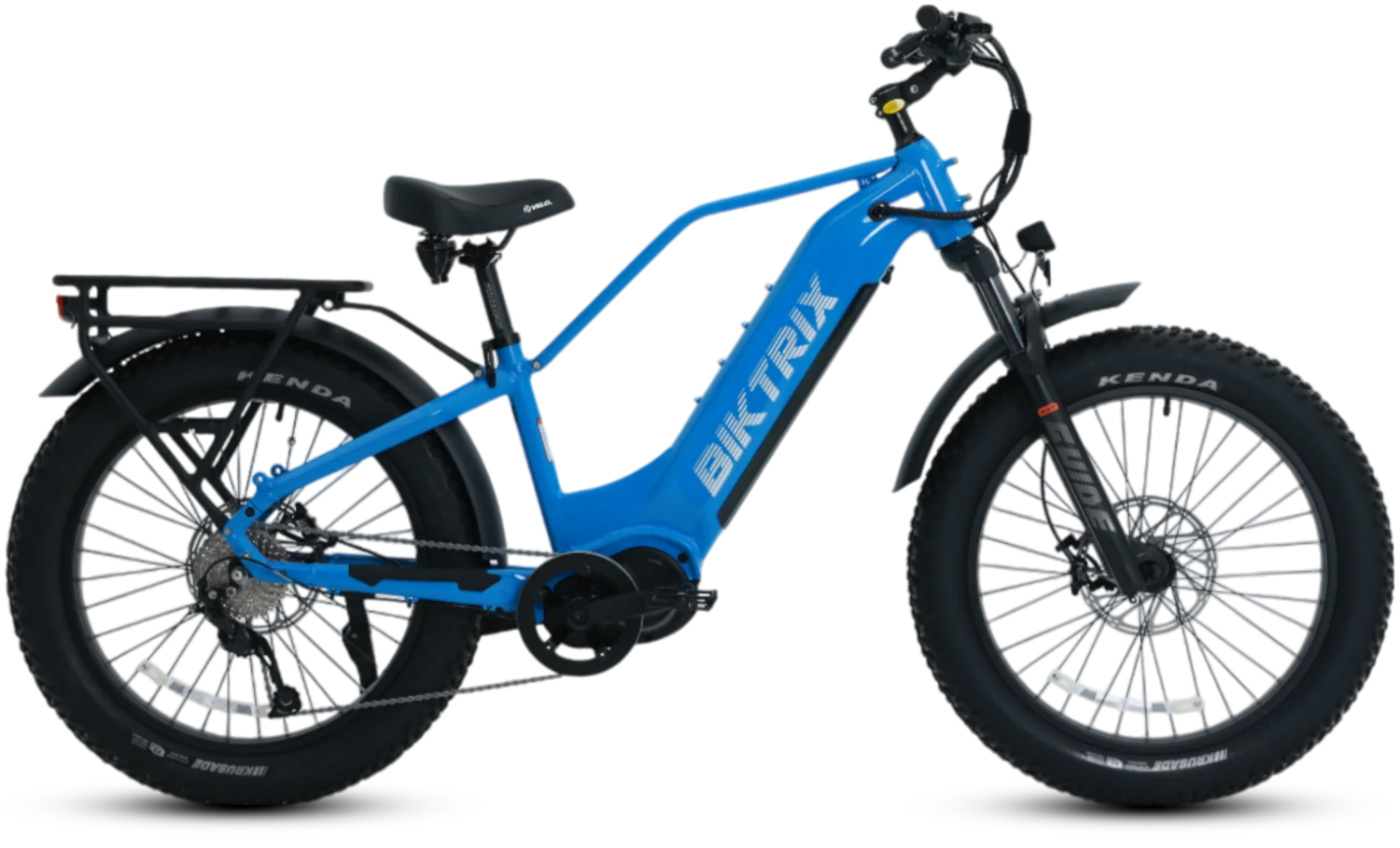

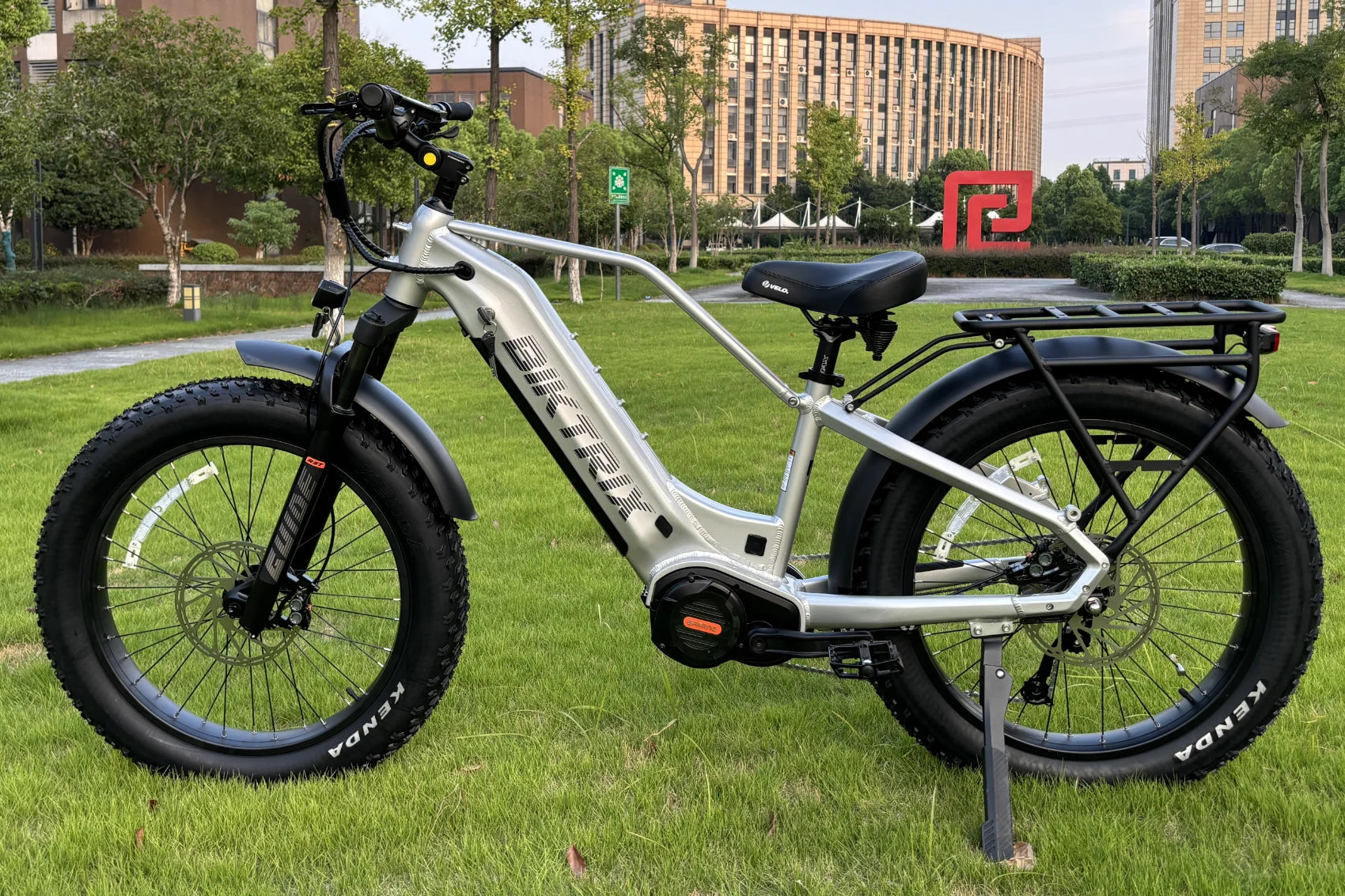

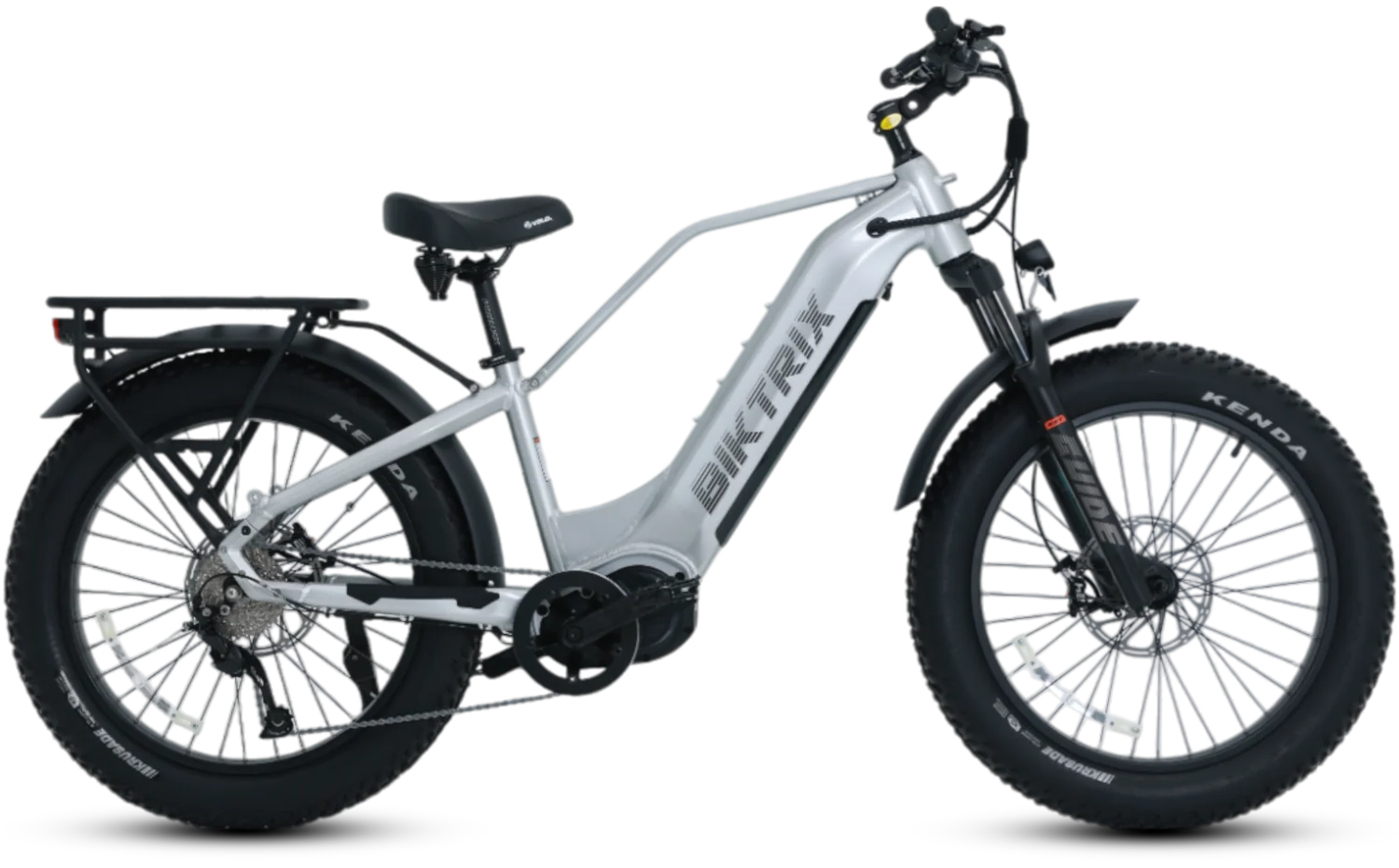

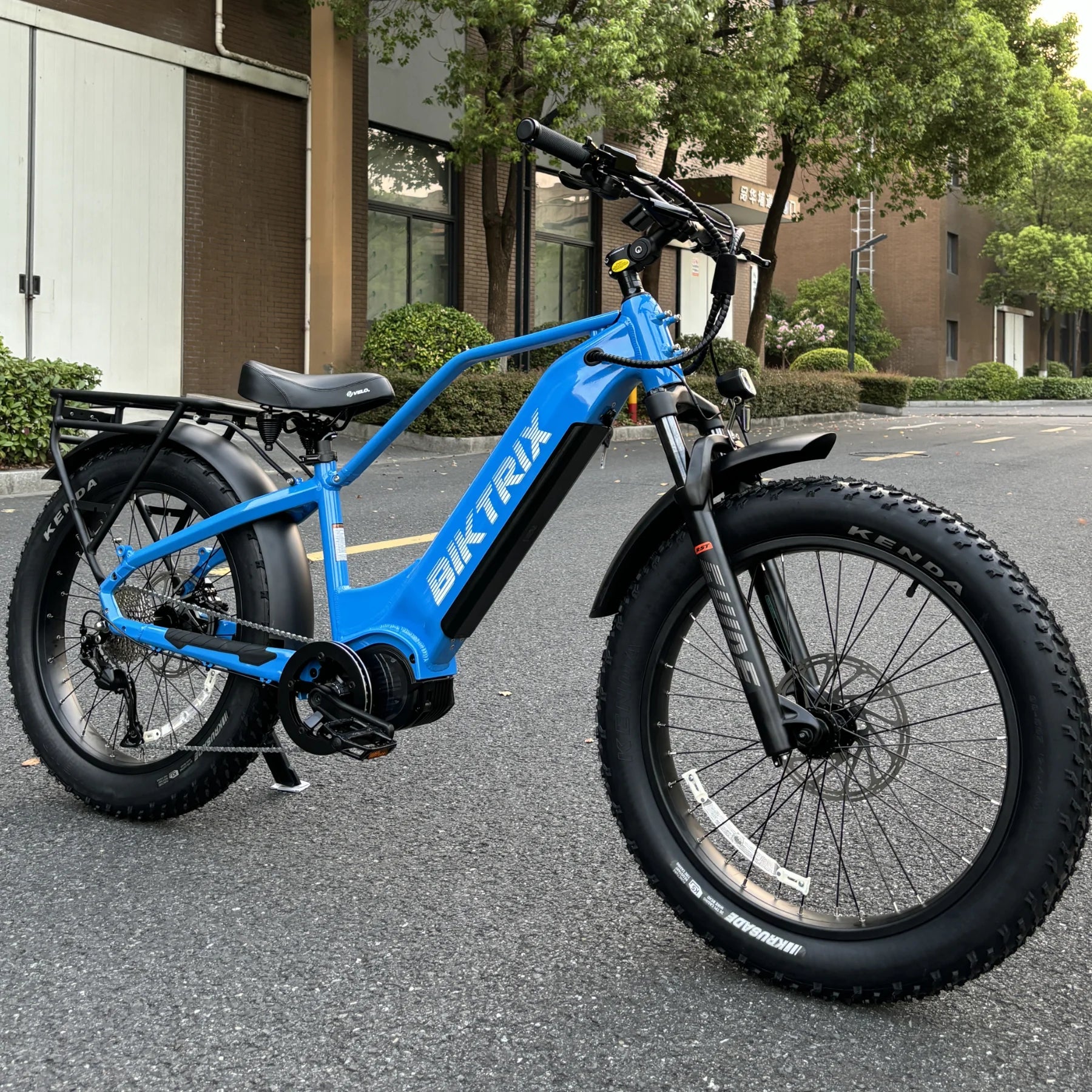

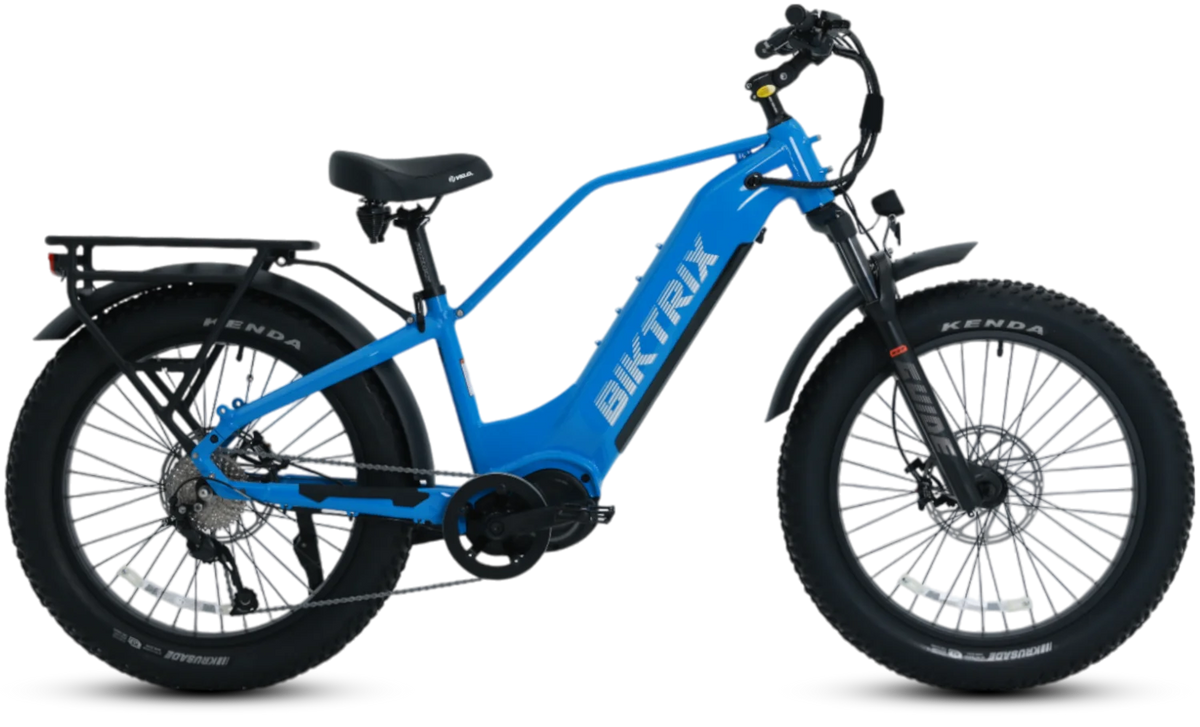

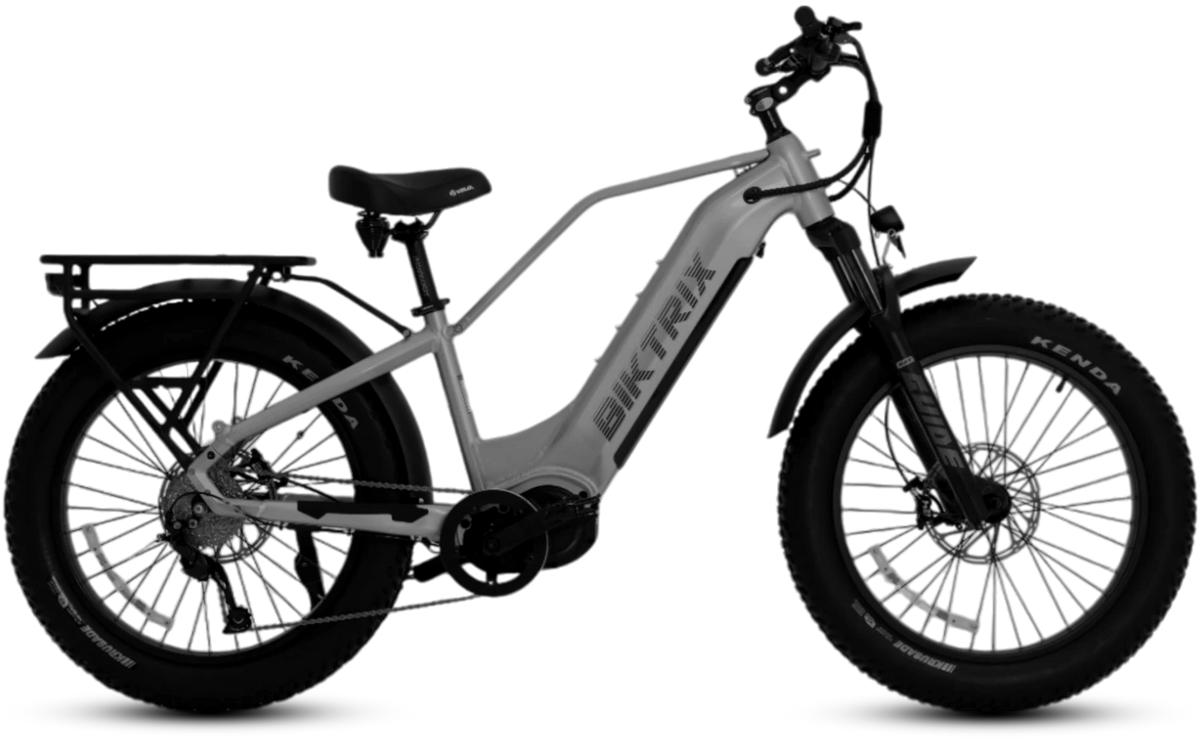

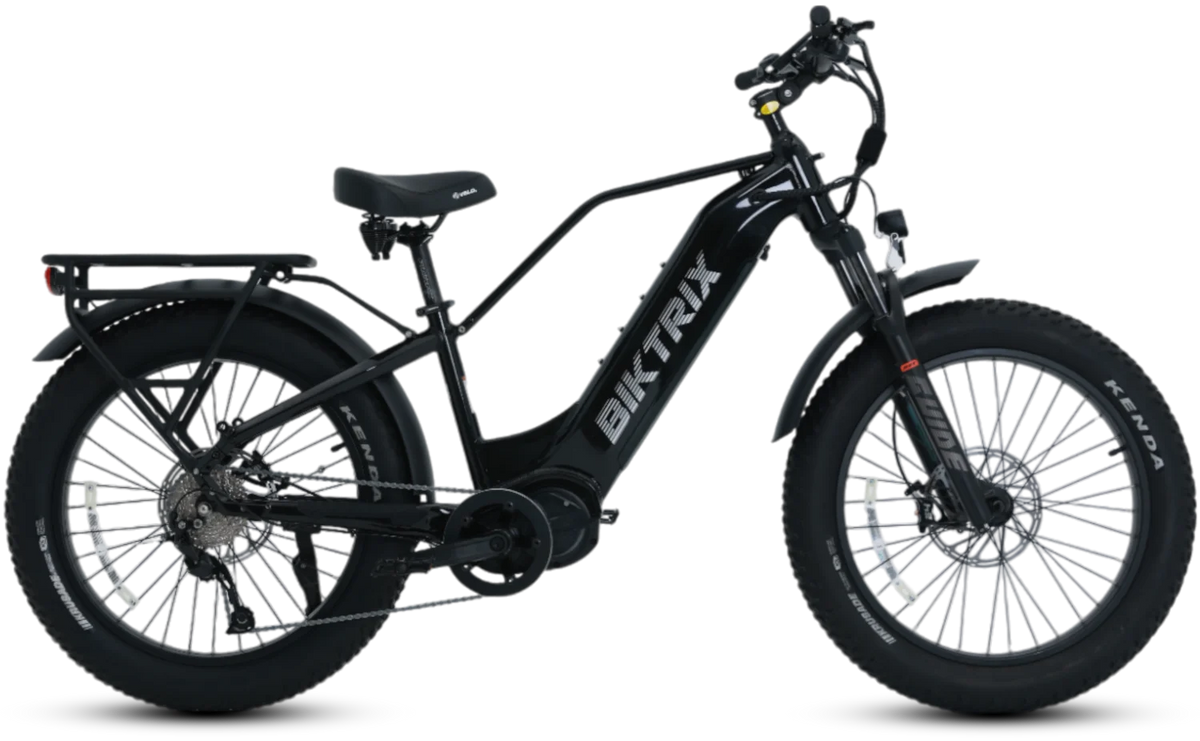

Juggernaut Ultra Duo Pro | 52V

Sale price CA$3,999

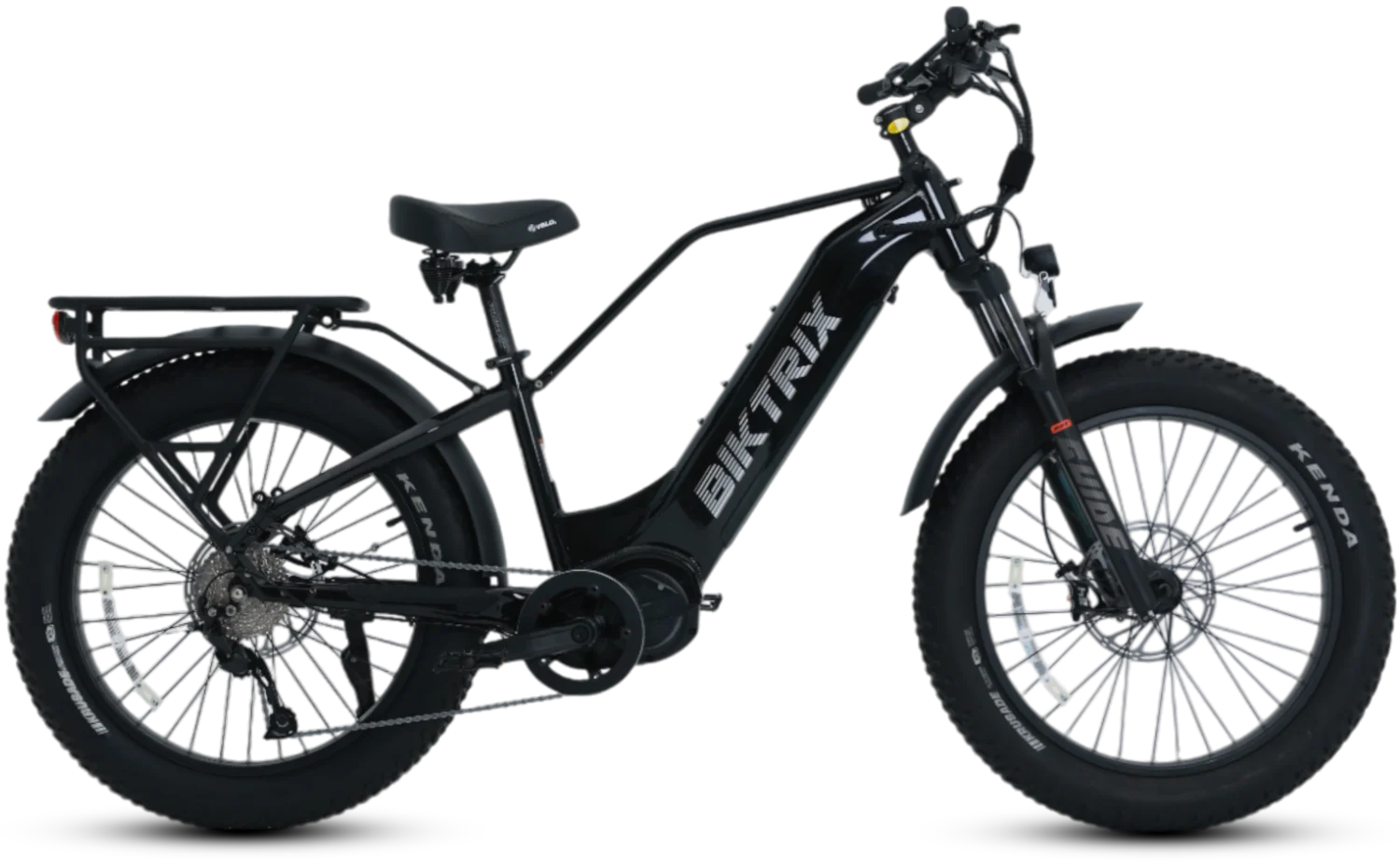

Gloss Black
Packages
Battery
Range Extender Battery


Add an additional battery to extend your bikes range and give you that boost!

Upgrades
Motor Power


Program your motor to meet local eBike regulations or opt for unlimited speed and power suitable for off-road use only.

Fork


Elevate your ride's comfort and control by upgrading your ebike fork, ensuring a smoother journey over any terrain.

**The Upgraded Fork options are incompatible with the front fender included with the bike.
Brakes


Enhance your safety and control on every ride by upgrading your eBike brakes.

Drive Train


Unmatched power, smooth performance, and eco-friendly commuting in one seamless package.

**Drivetrain upgrade included Shifter, Cassette, Derailleur and Chain
Headlights


Illuminate your path to adventure with an upgraded eBike headlight, delivering superior visibility and style for night-time riding.

Note: This is a DIY upgrade upon purchasing the bike. Our Installation Guide for this can be found here.

**The price is discounted from the regular price of $300.
Biktrix A-Bars


The swept-back design provides an upright riding position with multiple comfortable hand positions so you can enjoy further and more frequent rides!

Accessories
Canvas Pannier Bags
Canvas Pannier Bags


These Canvas bags offer great convenience and carrying capacity!

Coloured Pedals


Add some extra flair to your eBike with a set of coloured pedals!

Warranty

Secure your investment by opting for an extended warranty through the BiktrixCare+ plan.

Sale price CA$3,999.00
Shipping: Leaves within Mid January
1000W Mid-Drive

Motor Power

160Nm of Torque

Extreme Hills

52V 20Ah 1040Wh

est. 85km Range

+5'3"ft / 330lb

Max Load

Torque Sensor

Powerful Pedal Assist

25+ Point Quality

Control Checklist

New Ultra Duo. New Pro Components

The new Ultra Duo Pro sports a larger battery capacity to take you even further on your rides! Combine that with a center-mounted display and the other tried and true Ultra Duo components and you have a solid, reliable eBike that can take you everywhere in style!

From Step-Thru to Step-Over in Seconds

Meet the SwapTop Frame - a game-changing frame design that we’ve worked on for the past two years. While owning a bike, we’ve often found instances where we wished that we had the versatility of changing between step-thru and step-over frames.

Performance. Fully Loaded.

See The Differences

See the highlight differences between the Juggernaut Ultra Duo and Juggernaut Ultra Duo Pro, showcasing variations in power, torque, and additional features that distinguish the Pro model as the more advanced option.

Ultra

Juggernaut Ultra Duo 4

Starting at CA$3,799.00

  • Step-Over OR Step-Thru Frame
  • 52V17Ah Downtube Battery
  • Trailers require aftermarket attachments
  • 75mm Travel RST Guide Suspension Fork
Ultra Pro

Juggernaut Ultra Duo Pro

Starting at CA$3,999.00

  • Swap-Top Frame – can be Step-Over OR Step-Thru
  • 52V20Ah Downtube Battery – 17% Capacity Increase!
  • Trailer Attachments Integrated into the frame
  • 95mm Travel RST Guide Suspension Fork

Distance Range (Single Battery)

PAS 1
Pedal-Assist Lv.1
95km Up To
PAS 2
Pedal-Assist Lv.2
80km Up To
PAS 3
Pedal-Assist Lv.3
69km Up To
PAS 4
Pedal-Assist Lv.4
63km Up To
PAS 5
Pedal-Assist Lv.5
57km Up To
THRL
Throttle Only
40km Up To
**Please note that information regarding the expected range on a single stock battery charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame
6061 aluminum swap-top frame
Front hub
135mm 36h bolt-on
Seat post
31.6mm
Fork
Rst guide suspension fork w/95mm travel, lockout and preload
Front axle
Bolt-on
Seat post clamp
38mm qr
Headset
Threadless 1-1/2" 1-1/8" tapered
Rear hub
170mm 36h bolt-on
Motor
Bafang ultra m620 mid-drive motor
Shifter rear
Shimano alivio 9 speed trigger shifter
Rear axle
Bolt-on
Battery sizes
Total capacity of 52v 37ah 1924wh:
52v 20ah 1040wh (internal battery) +
52v 17ah 910wh (external range extender battery)
Rear derailleur
Shimano alivio 9 speed
Rims
Solid black 36h
Display
Dpc 18 colour display
Cassette
11-34 9 speed cassette
Tire sizes
Kenda krusade 24x4
Lights
Integrated headlight, integrated taillight
Chain
Kmc e9s - 126 links
Handlebar
780mm wide, 8° rise, 9° backsweet w/31.8mm clamp
Assist type
Torque + cadence
Crank set
40t chainring w/ 152mm arms
Stem
110mm adjustable w/31.8mm clamp
Assist levels
1-5
Bottom bracket
Bafang isis
Grips
Bolt-on mtb grips
Throttle
Thumb throttle
Brakes
Iiipro e500 quad-piston brakes w/203mm rotors
Saddle
Ddk gel-padded saddle
Other
Rear rack, fenders, kickstand
Brake levers
Adjustable w/ integrated brake cutoffs
Frame
6061 aluminum swap-top frame
Front hub
135mm 36h bolt-on
Seat post
31.6mm
Fork
Rst guide suspension fork w/95mm travel, lockout and preload
Front axle
Bolt-on
Seat post clamp
38mm qr
Headset
Threadless 1-1/2" 1-1/8" tapered
Rear hub
170mm 36h bolt-on
Motor
Bafang ultra m620 mid-drive motor
Shifter rear
Shimano alivio 9 speed trigger shifter
Rear axle
Bolt-on
Battery sizes
Total capacity of 52v 37ah 1924wh:
52v 20ah 1040wh (internal battery) +
52v 17ah 910wh (external range extender battery)
Rear derailleur
Shimano alivio 9 speed
Rims
Solid black 36h
Display
Dpc 18 colour display
Cassette
11-34 9 speed cassette
Tire sizes
Kenda krusade 24x4
Lights
Integrated headlight, integrated taillight
Chain
Kmc e9s - 126 links
Handlebar
780mm wide, 8° rise, 9° backsweet w/31.8mm clamp
Assist type
Torque + cadence
Crank set
40t chainring w/ 152mm arms
Stem
110mm adjustable w/31.8mm clamp
Assist levels
1-5
Bottom bracket
Bafang isis
Grips
Bolt-on mtb grips
Throttle
Thumb throttle
Brakes
Iiipro e500 quad-piston brakes w/203mm rotors
Saddle
Ddk gel-padded saddle
Other
Rear rack, fenders, kickstand
Brake levers
Adjustable w/ integrated brake cutoffs
Frame
6061 aluminum swap-top frame
Front hub
135mm 36h bolt-on
Seat post
31.6mm
Fork
Rst guide suspension fork w/95mm travel, lockout and preload
Front axle
Bolt-on
Seat post clamp
38mm qr
Headset
Threadless 1-1/2" 1-1/8" tapered
Rear hub
170mm 36h bolt-on
Motor
Bafang ultra m620 mid-drive motor
Shifter rear
Shimano alivio 9 speed trigger shifter
Rear axle
Bolt-on
Battery sizes
Total capacity of 52v 37ah 1924wh:
52v 20ah 1040wh (internal battery) +
52v 17ah 910wh (external range extender battery)
Rear derailleur
Shimano alivio 9 speed
Rims
Solid black 36h
Display
Dpc 18 colour display
Cassette
11-34 9 speed cassette
Tire sizes
Kenda krusade 24x4
Lights
Integrated headlight, integrated taillight
Chain
Kmc e9s - 126 links
Handlebar
780mm wide, 8° rise, 9° backsweet w/31.8mm clamp
Assist type
Torque + cadence
Crank set
40t chainring w/ 152mm arms
Stem
110mm adjustable w/31.8mm clamp
Assist levels
1-5
Bottom bracket
Bafang isis
Grips
Bolt-on mtb grips
Throttle
Thumb throttle
Brakes
Iiipro e500 quad-piston brakes w/203mm rotors
Saddle
Ddk gel-padded saddle
Other
Rear rack, fenders, kickstand
Brake levers
Adjustable w/ integrated brake cutoffs

Size & Fittings

1
Effective Top Tube Length
620mm 24.4in
2
Seat Tube Length (Classic Bike Size)
410mm 16.1in
3
Reach
470mm 18.5in
4
Stack
600mm 23.6in
5
Chainstay Length
485mm 19.1in
6
Standover Height
730mm 28.7in
7
Head Angle
65° -
8
Seat Angle
74° -
9
Head Tube Length
150 mm 5.9 in
10
Fork Length
540mm 21.3in
11
Front Center
830mm 32.7in
12
BB (Bottom Bracket) Drop
60mm 2.4in
13
Fork Offset
50mm 2in
14
Wheelbase
1280mm 50.4in
15
Total Length
2000mm 78.7in
16
Max Seat Height
950mm 37.4in
17
Min Seat Height
780mm 30.7in
18
Handlebar Height
1080mm 42.5in
19
Weight (Without Battery)
33.8kg 74.5lb
