FrameCarbon fiber |
Front hub110mm 36h thru (boost)/150mm 36h thru (26x4.8") (fat tire) |
Seat post31.6mm aluminum |

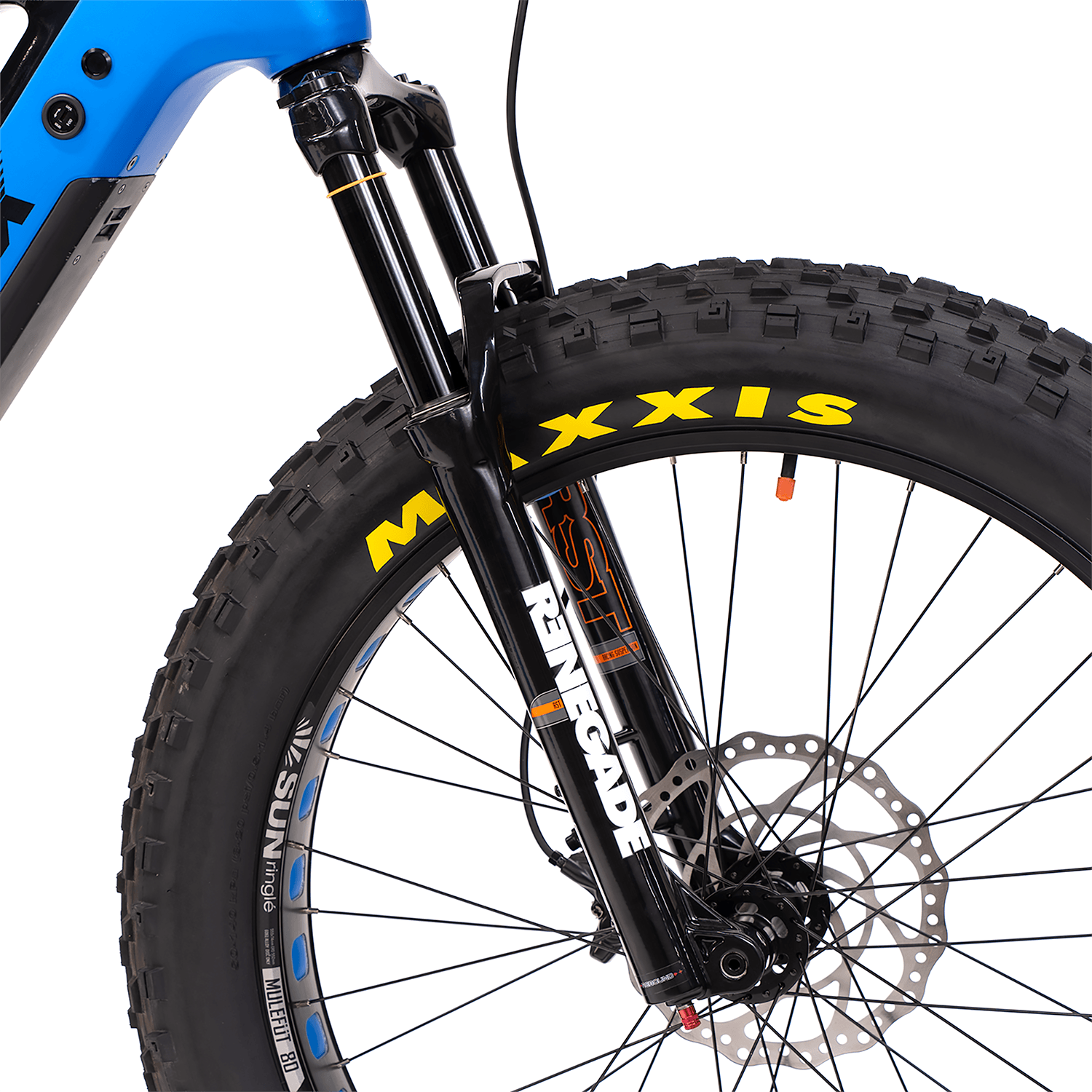

ForkRockshox 35 w/160mm travel, lockout & rebound (boost)/rst renegade w/100mm travel, lockout&rebound (fat tire) |
Front axle15mm thru qr |
Seat post clampBolt-on |
HeadsetThreadless 1-1/2 1-1/2 tapered |
Rear hub148mm 36h thru (boost)/197mm 36h thru (fat tire) |

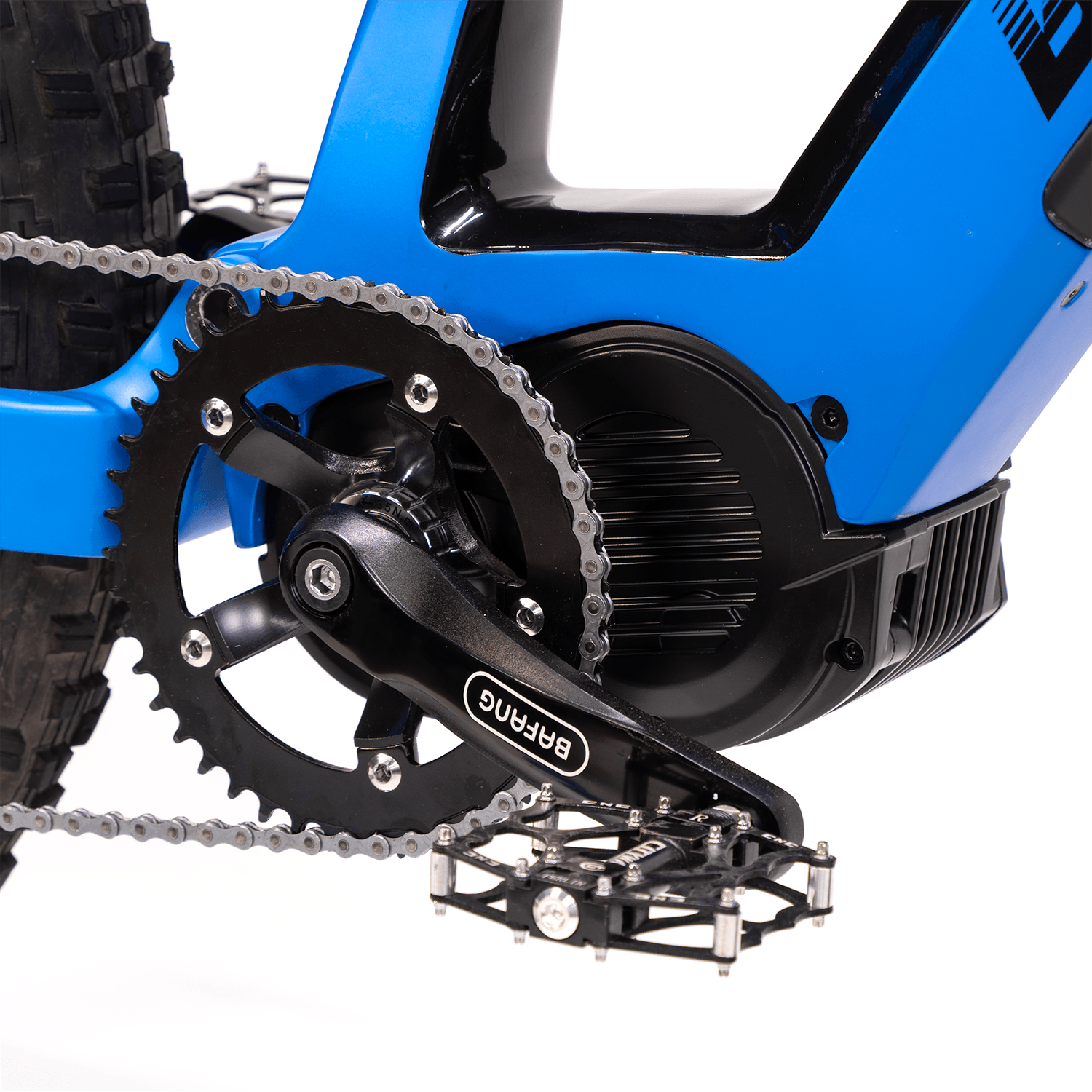

MotorCanbus bafang ultra m620 |
Shifter rearSram nx 11 speed trigger |
Rear axle12mm thru axle |
Battery sizes48v17ah hidden |
Rear derailleurSram nx 11 speed |
Rims27.5" 36h solid black 40mm wide (boost)/26" 36h black w/square cutouts 80mm wide (fat tire) |

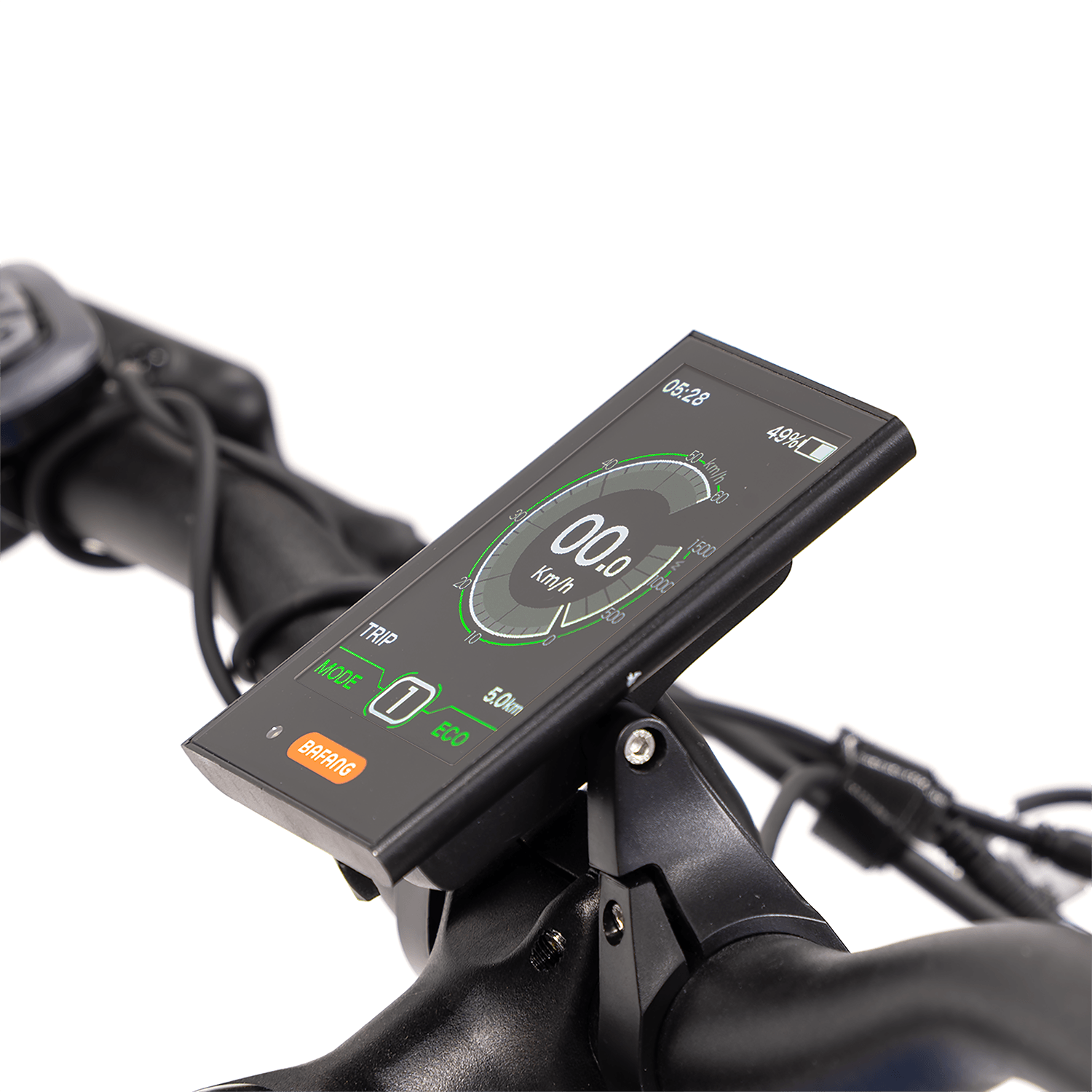

DisplayCanbus dpc-18 |
CassetteSram 11-42t |
Tire sizes27.5x3" (boost)/26x4.8" (fat tire) |
ChainKmc x11e |
Handlebar31.8mm clamp, 750mm wide, 50mm rise |
Assist typeTorque + cadence |
Crank set170mm crank arms w/40t chainring (no chainguard) (boost)/170mm crank arms w/44t chainring (no chainguard) (fat tire) |
Stem80mm aluminum |
Assist levels1-5 |
Bottom bracketBafang isis |
GripsBolt on mtb grips |
ThrottleThumb throttle |
BrakesTektro dorado e725 quad-piston w/203mm rotors |
SaddleSelleroyal freeway |
OtherRockshox deluxe + rear shock w/62.5mm stroke |
Brake leversTektro dorado w/ adjustable reach and brake cutoffs |

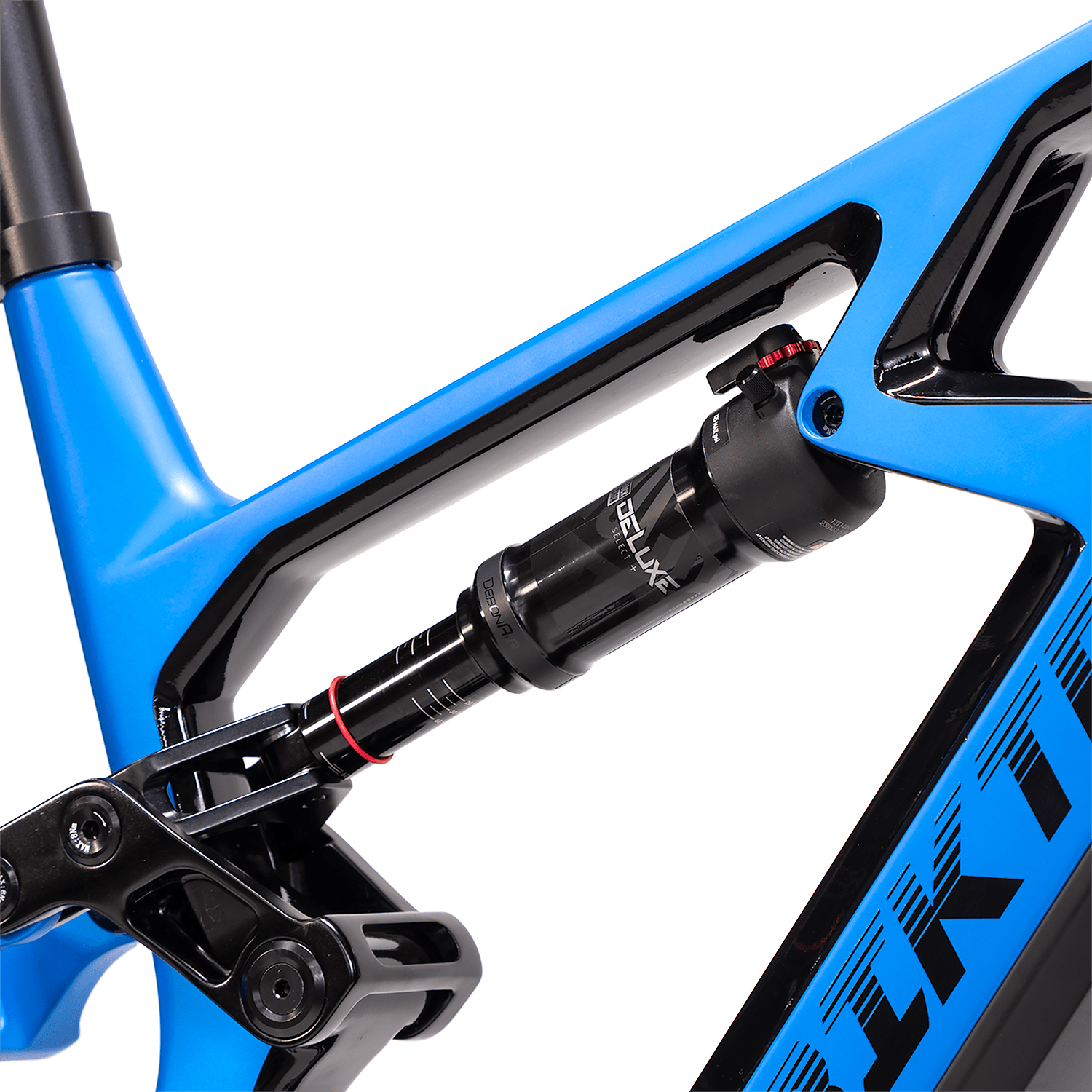

Rear suspensionRockshox deluxe + rear shock w/62.5mm stroke |
FrameCarbon fiber |
Front hub110mm 36h thru (boost)/150mm 36h thru (26x4.8") (fat tire) |
Seat post31.6mm aluminum |
ForkRockshox 35 w/160mm travel, lockout & rebound (boost)/rst renegade w/100mm travel, lockout&rebound (fat tire) |
Front axle15mm thru qr |
Seat post clampBolt-on |
HeadsetThreadless 1-1/2 1-1/2 tapered |
Rear hub148mm 36h thru (boost)/197mm 36h thru (fat tire) |
MotorCanbus bafang ultra m620 |
Shifter rearSram nx 11 speed trigger |
Rear axle12mm thru axle |
Battery sizes48v17ah hidden |
Rear derailleurSram nx 11 speed |
Rims27.5" 36h solid black 40mm wide (boost)/26" 36h black w/square cutouts 80mm wide (fat tire) |
DisplayCanbus dpc-18 |
CassetteSram 11-42t |
Tire sizes27.5x3" (boost)/26x4.8" (fat tire) |
ChainKmc x11e |
Handlebar31.8mm clamp, 750mm wide, 50mm rise |
Assist typeTorque + cadence |
Crank set170mm crank arms w/40t chainring (no chainguard) (boost)/170mm crank arms w/44t chainring (no chainguard) (fat tire) |
Stem80mm aluminum |
Assist levels1-5 |
Bottom bracketBafang isis |
GripsBolt on mtb grips |
ThrottleThumb throttle |
BrakesTektro dorado e725 quad-piston w/203mm rotors |
SaddleSelleroyal freeway |
OtherRockshox deluxe + rear shock w/62.5mm stroke |
Brake leversTektro dorado w/ adjustable reach and brake cutoffs |
Rear suspensionRockshox deluxe + rear shock w/62.5mm stroke |

1 | Effective Top Tube Length |
560mm | 22in |
2 | Seat Tube Length (Classic Bike Size) |
480mm | 18.9in |
3 |
Reach |
480mm | 18.9in |
4 |
Stack |
600mm | 23.6in |
5 |
Chainstay Length |
470mm | 18.5in |
6 |
Standover Height |
700mm | 27.6in |
7 |
Head Angle |
64° | - |
8 |
Seat Angle |
70° | - |
9 |
Head Tube Length |
120 mm | 4.7 in |
10 |
Fork Length |
570mm | 22.4in |
11 |
Front Center |
790mm | 31.1in |
12 |
BB (Bottom Bracket) Drop |
40mm | 1.6in |
13 |
Fork Offset |
40mm | 1.6in |
14 |
Wheelbase |
1270mm | 50in |
15 |
Total Length |
2000mm | 78.7in |
16 |
Max Seat Height |
1065mm | 41.9in |
17 |
Min Seat Height |
920mm | 36.2in |
18 |
Handlebar Height |
1160mm | 45.7in |
19 |
Weight (Without Battery) |
23.1kg | 50.9lb |
1 | Effective Top Tube Length |
600mm | 23.6in |
2 | Seat Tube Length (Classic Bike Size) |
500mm | 19.7in |
3 |
Reach |
490mm | 19.3in |
4 |
Stack |
570mm | 22.4in |
5 |
Chainstay Length |
500mm | 19.7in |
6 |
Standover Height |
730mm | 28.7in |
7 |
Head Angle |
64° | - |
8 |
Seat Angle |
70° | - |
9 |
Head Tube Length |
125 mm | 4.9 in |
10 |
Fork Length |
540mm | 21.3in |
11 |
Front Center |
800mm | 31.5in |
12 |
BB (Bottom Bracket) Drop |
50mm | 2in |
13 |
Fork Offset |
40mm | 1.6in |
14 |
Wheelbase |
1300mm | 51.2in |
15 |
Total Length |
2060mm | 81.1in |
16 |
Max Seat Height |
1140mm | 44.9in |
17 |
Min Seat Height |
905mm | 35.6in |
18 |
Handlebar Height |
1140mm | 44.9in |
19 |
Weight (Without Battery) |
25kg | 55.1lb |
