Overview

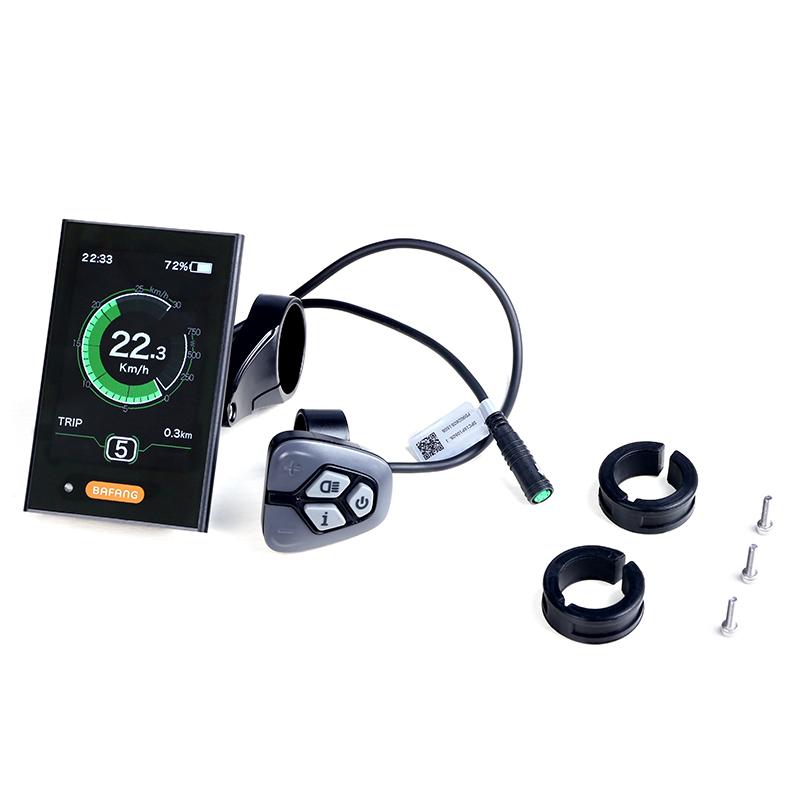

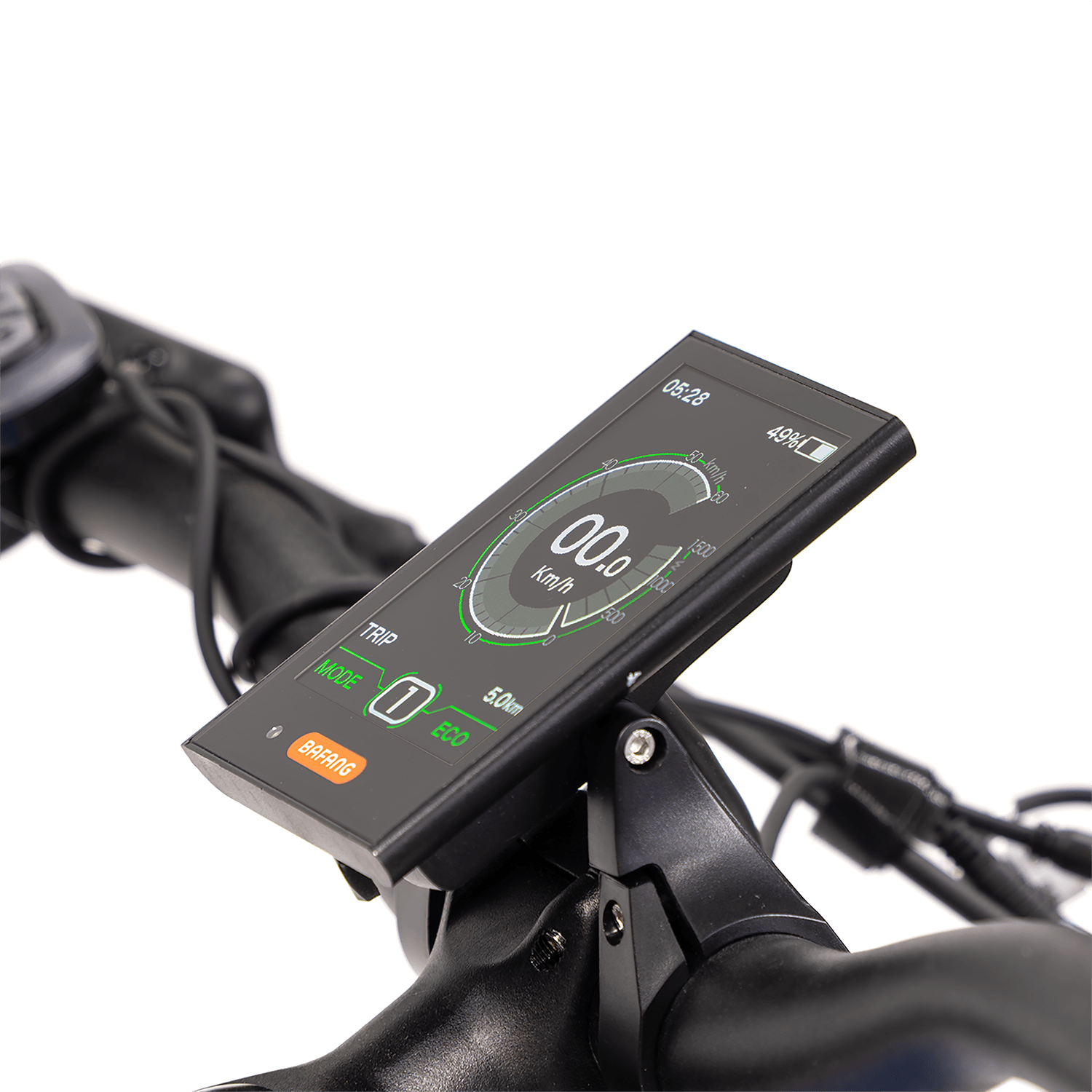

The Bafang DPC-18 is a full-colour LCD display for eBikes equipped with BBS02, BBSHD, and M620 Ultra motors. Considered to be one of the best displays in the eBike industry, the DPC-18’s visually bright and crystal-clear screen is easy to read and understand and allows users to fine-tune a multitude of settings.
The DPC-18 shows information such as speed, battery life, pedal-assist level, trip distance, average speed, trip time, total mileage, and more.
Customize the DPC-18 to your preferences by choosing to display distance in miles or kilometres. Go even further and decide to display your battery power in either voltage or percentage remaining.
The control panel utilizes a simple and effective button system to turn the eBike on/off, change pedal-assist levels, activate the bike’s front and rear lights, cycle through information on the display, and engage walk mode.
An additional feature is the USB power plug found on the bottom of the display! Extend your phone’s charge or power simple USB devices through your eBike’s battery.
Note: The Eco/Sport Mode Displays are Takeoff Parts which have been removed from brand-new, never ridden bikes. These displays may have some minor scuffs or fitment marks and 1-2 km due to factory testing but are identical in performance and specifications to the brand-new version.
Note: This display IS NOT compatible with the Juggernaut XD / Juggernaut XD Duo.
Technical Specifications
Number of PAS Levels
1-5 (Can Switch to 1-3, 1-9) OR 1-5 with ECO / SPORT Mode
Battery Guage Display
Percent Remaining or Battery Voltage
Control Pad
5 Button Controls
Display Screen Details
3.2 Inch Full Colour LCD Display
USB Port
5V 0.5A Power Output
Connector
Green 5-Pin Female Connector
USB Output
5V 0.5A
Communications Protocol
UART Protocol
Compatibility
| Bike Name | Compatible |
|---|---|
| Juggernaut Hub Duo | |
| Juggernaut Classic / Juggernaut Classic Duo | |
| Juggernaut HD / HD Duo | |
| Juggernaut Ultra Duo 1/2/3 | |
| Juggernaut Ultra 1000 | |
| Juggernaut Ultra FS / Ultra FS Pro | |
| Juggernaut XD / XD Duo | |
| Juggernaut Ultra Beast 1 | |
| Juggernaut Ultra Beast 2 | |
| Monte Capro Ultra 1 | |
| Monte Capro Ultra 2 | |
| Monte Capro Lite | |
| Stunner Step-Over / Step-Thru Series | |
| Stunner X Series | |
| Stunner LT (All Versions) | |
| Swift Lite 1/2/3 | |
| Swift Step-Thru 1/2 | |
| Swift Step-Over 1 | |
| Swift Step-Over 2 | |
| Swift X | |
| Kutty / Kutty X 1 | |
| Kutty X 2 | |
| Skycap 1/2 | |
| Challenger 1/2 | |
| Moto |
